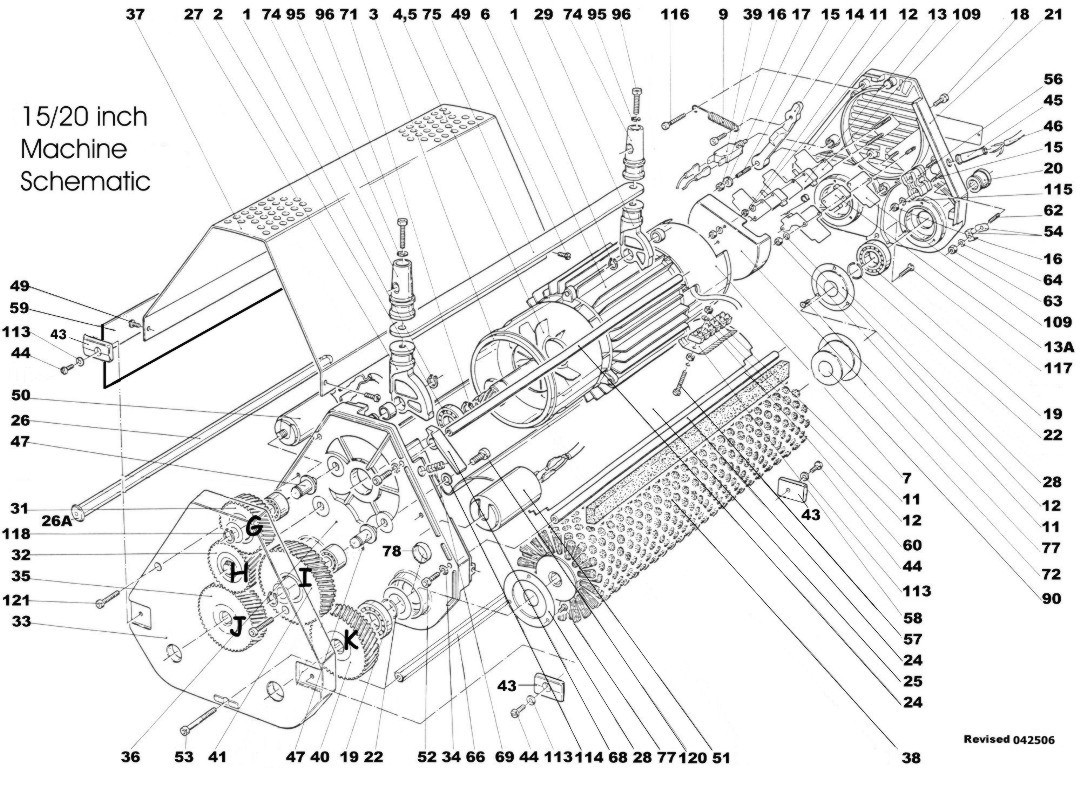

Smart Care Twin Internal Parts

#37 -- Motor Cover -- PN: *see details* #27 -- Handle Connector Lower G -- PN: 8030 #2 -- Bearing - Motor Shaft -- PN: 8004 #1 -- Snap Ring - Handle Connector -- PN: 111-2/3/4 #74 -- Handle Connector Cone -- PN: 8211(15in), 48212(20in) #95 -- Lockwasher - GLS 15 only -- PN: 8219 #96 -- Screw - Cone -- PN: 8024(15in), 8220(20in) #71 -- Snap Ring - Motor Shaft -- PN: 8038 #3 -- Distance Piece G -- PN: 8005(15in), 12005(20in) #4, #5 -- Black Fan (Ventilator & Tension Pin) -- PN: 8015, 8007 #75 -- Handle Connector Bar -- PN: 8253(15in), 11253(20in) #49 -- Screw - Motor Cover -- PN: 8046 #6 -- Motor -- PN: 12003(10in), 8003(15in), 11003(20in) #1 -- Snap Ring - Handle Connector -- PN: 111-2/3/4 #29 -- Handle Connector Lower E -- PN: 8035 #74 -- Handle Connector Cone -- PN: 8211(15in), 48212(20in) #95 -- Lockwasher - GLS 15 only -- PN: 8219 #96 -- Screw - Cone -- PN: 8024(15in), 8220(20in) #116 -- Screw - Spring Peg M6X25 -- PN: 8024 #9 -- Spring - Switching Part -- PN: 8008 #39 -- Motor Protector -- PN: 18310-2/3/4 #16 -- Nut - Switchcover/Terminal Block -- PN: 8118 #17 -- Washer - Switching Part -- PN: 8186 #15 -- Worm Screw - Grounding Post/Switchpart -- PN: 8185 #14 -- Switch Lever Part - With Spring -- PN: 8184 #11 -- Nut - Switch Cover/Terminal Block -- PN: 8178 #12 -- Lockwasher - Switch Cover -- PN: 8191 #13 -- Microswitch GLS -- PN: 8182 #109 -- Insulator - Microswitch -- PN: 177-2/3/4 #18 -- Screw - Housing E -- PN: 8095 #21 -- Housing E Complete -- PN: 8016 #56 -- Cable Clamp - Red -- PN: 172-2/3/4 #45 -- Grommet - Machine -- PN: 171-16 #46 -- Power Cord -- PN: *see details* #15 -- Worm Screw - Grounding Post/Switchpart -- PN: 8185 #20 -- Flange -- PN: 8083 #115 -- Lockwasher - M5 -- PN: 6065 #54 -- Ground Wire Clamp Strip -- PN: 8169 #16 -- Nut - Switchcover/Terminal Block -- PN: 8118 #64 -- Lockwasher - Ground Post M4 -- PN: 8013 #63 -- Nut Ground Post M4 -- PN: 8118 #109 -- Insulator - Microswitch -- PN: 177-2/3/4 #13a -- Microswitch - Ground -- PN: 8182-G #117 -- Screw - Cord Protector M5X20 -- PN: 045-2/3/4 #19 -- Bearing - Gear/Flange -- PN: 026-2/3/4 #22 -- Retaining Ring - Gear J/K, Flange -- PN: 069-2/3/4 #28 -- Plate - Axle Seal -- PN: 054-2/3/4 #12 -- Lockwasher - Switch Cover -- PN: 8191 #11 -- Nut - Switch Cover/Terminal Block -- PN: 8178 #77 -- Screw - Axle Seal M3X5 -- PN: 053-2/3/4 #72 -- Switch Cover -- PN: 8190 #90 -- End Cap - Brush -- PN: 090CAP #7 -- Distance Piece E -- PN: 8006(15in), 12006(20in) #11 -- Nut - Switch Cover/Terminal Block -- PN: 8178 #12 -- Lockwasher - Switch Cover -- PN: 8191 #60 -- Terminal Block - Electrical -- PN: 8175 #44 -- Screw - Side Protector -- PN: 8048 #113 -- Flat Washer - Side Protector -- 6045 #57 -- Screw - Terminal Block -- PN: 8174 #24 -- Space Stud -- PN: 8096-R(15in rear w/ nuts), 12096-R(20in rear w/ nuts), 8096(15in front), 12096(20in front) #25 -- Brush Cover -- PN: 8028(15in), 11028(20in) #24 -- Space Stud -- PN: 8096-R(15in rear w/ nuts), 12096-R(20in rear w/ nuts), 8096(15in front), 12096(20in front) #38 -- Brushes -- PN: *see details* #51 -- Starting Capacitor - 20uf PN 18020 #120 -- Screw - Bearing Pin M6/15 -- PN: 8044 #77 -- Screw - Axle Seal M3X5 -- PN: 053-2/3/4 #28 -- Plate - Axle Seal -- PN: 054-2/3/4 #68 -- Handle Stop - Foot Pedal New-- PN: 8173N #114 -- Lockwasher M6 - Bearing Pin -- PN: 8219 #113 -- Flat Washer - Side Protector -- PN: 6045 #44 -- Screw - Side Protector -- PN: 8048 #69 -- Spring - Handle Stop -- PN: 8139 #66 -- Cord Protector -- PN: 8093(15in), 8093-20(20in) #34 -- Lockwasher - Housing G -- PN: 8090 #52 -- Screw M5X12 - Gear Housing -- PN: 091-4 #30 -- Protective Plate -- PN: 080-2/3/4 #22 -- Retaining Ring - Gear J/K, Flange -- PN: 069-2/3/4 #19 -- Bearing - Gear/Flange -- PN: 026-2/3/4 #40 -- Gear K -- PN: 8039 #47 -- Bearing Pin -- PN: 8032(w/ internal screw), 8043(w/out) #41 -- Gear I -- PN: 8040 #53 -- Screw - Cord Protector M5X45 -- PN: 12082 #36 -- Housing G Complete - With Gears -- PN: 8020 #33 -- Gear Cover -- PN: 8031 #121 -- Screw - Gear Cover M5X25 -- PN: 8222 #35 -- Gear J -- PN: 8034 #32 -- Gear H -- PN: 8037 #118 -- Snap Ring - Gears G, H, And I -- PN: 8025 #26a -- Nut - Axle -- PN: 8049 #31 -- Gear G -- PN: 8036 #47 -- Bearing Pin -- PN: 8032(w/ internal screw), 8043(w/out) #26 -- Brush Axle -- PN: *see details* #50 -- Running Capacitor - 40uF -- PN: 18040 #44 -- Screw - Side Protector -- PN: 8048 #113 -- Flat Washer - Side Protector -- PN: 6045 #59 - Removable Dust Flap (Front only) -- 8047R (15 inch), 11047R (20 inch) #49 -- Screw - Motor Cover -- PN: 8046 #78 -- Rubber V-Ring Seal -- PN: 071-2/3/4 #44 -- Screw - Side Protector -- PN: 8048 #113 -- Flat Washer - Side Protector -- 6045 #49 -- Screw - Motor Cover -- PN: 8046 #96 -- Screw - Cone -- PN: 8024(15in), 8220(20in) #95 -- Lockwasher - GLS 15 only -- PN: 8219 #74 -- Handle Connector Cone -- PN: 8211(15in), 48212(20in) #71 -- Snap Ring - Motor Shaft -- PN: 8038 #51 -- Running Capacitor - 20uf PN 18020 #120 -- Screw - Bearing Pin M6/15 -- PN: 8044 #68 -- Handle Stop - Foot Pedal New -- PN: 8173N #69 -- Spring - Handle Stop -- PN: 8139 #2 -- Bearing - Motor Shaft -- PN: 8004 #1 -- Snap Ring - Handle Connector -- PN: 111-2/3/4 #27 -- Handle Connector Lower G -- PN: 8030 #34 -- Lockwasher - Housing G -- PN: 8090 #52 -- Screw M5X12 - Gear Housing -- PN: 091-4 #78 -- Rubber V-Ring Seal -- PN: 071-2/3/4 #30 -- Protective Plate -- PN: 080-2/3/4 #22 -- Retaining Ring - Gear J/K, Flange -- PN: 069-2/3/4 #19 -- Bearing - Gear/Flange -- PN: 026-2/3/4 #118 -- Snap Ring - Gears G, H, And I -- PN: 8025 #41 -- Gear I -- PN: 8040 #47 -- Bearing Pin -- PN: 8032(w/ internal screw), 8043(w/out) #47 -- Bearing Pin -- PN: 8032(w/ internal screw), 8043(w/out) #32 -- Gear H -- PN: 8037 #118 -- Snap Ring - Gears G, H, And I -- PN: 8025 #31 -- Gear G -- PN: 8036 #50 -- Starting Capacitor - 40uF -- PN: 18040 #52 -- Screw M5X12 - Gear Housing -- PN: 091-4 #34 -- Lockwasher - Housing G -- PN: 8090 #96 -- Screw - Cone -- PN: 8024(15in), 8220(20in) #95 -- Lockwasher - GLS 15 only -- PN: 8219 #74 -- Handle Connector Cone -- PN: 8211(15in), 48212(20in) #44 -- Screw - Side Protector -- PN: 8048 #113 -- Flat Washer - Side Protector -- PN: 6045 #113 -- Flat Washer - Side Protector -- PN: 6045 #44 -- Screw - Side Protector -- PN: 8048 #77 -- Screw - Axle Seal M3X5 -- PN: 053-2/3/4 #28 -- Plate - Axle Seal -- PN: 054-2/3/4 #66 -- Cord Protector -- PN: 8093(15in), 8093-20(20in) #40 -- Gear K -- PN: 8039 #121 -- Screw - Gear Cover M5X25 -- PN: 8222 #35 -- Gear J -- PN: 8034 #53 -- Screw - Cord Protector M5X45 -- PN: 12082 #33 -- Gear Cover -- PN: 8031 #121 -- Screw - Gear Cover M5X25 -- PN: 8222 #26a -- Nut - Axle -- PN: 8049 #49 -- Screw - Motor Cover -- PN: 8046 #26 -- Brush Axle -- PN: *see details* #24 -- Space Stud -- PN: 8096-R(15in rear w/ nuts), 12096-R(20in rear w/ nuts), 8096(15in front), 12096(20in front) #1 -- Snap Ring - Handle Connector -- PN: 111-2/3/4 #49 -- Screw - Motor Cover -- PN: 8046 #29 -- Handle Connector Lower E -- PN: 8035 #57 -- Screw - Terminal Block -- PN: 8174 #24 -- Space Stud -- PN: 8096-R(15in rear w/ nuts), 12096-R(20in rear w/ nuts), 8096(15in front), 12096(20in front) #90 -- End Cap - Brush -- PN: 090CAP #77 -- Screw - Axle Seal M3X5 -- PN: 053-2/3/4 #36 -- Housing G Complete - With Gears -- PN: 8020 #75 -- Handle Connector Bar -- PN: 8253(15in), 11253(20in) #37 -- Motor Cover -- PN: *see details* #18 -- Screw - Housing E -- PN: 8095 #46 -- Power Cord -- PN: *see details* #45 -- Grommet - Machine -- PN: 171-16 #20 -- Flange -- PN: 8083 #54 -- Ground Wire Clamp Strip -- PN: 8169 #64 -- Lockwasher - Ground Post M4 -- PN: 8013 #63 -- Nut Ground Post M4 -- PN: 8118 #117 -- Screw - Cord Protector M5X20 -- PN: 045-2/3/4 #22 -- Retaining Ring - Gear J/K, Flange -- PN: 069-2/3/4 #19 -- Bearing - Gear/Flange -- PN: 026-2/3/4 #28 -- Plate - Axle Seal -- PN: 054-2/3/4 #15 -- Worm Screw - Grounding Post/Switchpart -- PN: 8185 #15 -- Worm Screw - Grounding Post/Switchpart -- PN: 8185 #56 -- Cable Clamp - Red -- PN: 172-2/3/4 #115 -- Lockwasher - M5 -- PN: 6065 #16 -- Nut - Switchcover/Terminal Block -- PN: 8118 #15 -- Worm Screw - Grounding Post/Switchpart -- PN: 8185 #17 -- Washer - Switching Part -- PN: 8186 #16 -- Nut - Switchpart/Cable Clamp -- PN: 8118 #39 -- Motor Protector -- PN: 18310-2/3/4 #9 -- Spring - Switching Part -- PN: 8008 #116 -- Screw - Spring Peg M6X25 -- PN: 8024 #60 -- Terminal Block - Electrical -- PN: 8175 #12 -- Lockwasher - Switch Cover -- PN: 8191 #11 -- Nut - Switchcover/Terminal Block -- PN: 8178 #38 -- Brushes -- PN: *see details* #11 -- Nut - Switch Cover/Terminal Block -- PN: 8178 #12 -- Lockwasher - Switch Cover -- PN: 8191 #12 -- Lockwasher - Switch Cover -- PN: 8191 #11 -- Nut - Switch Cover/Terminal Block -- PN: 8178 #109 -- Insulator - Microswitch -- PN: 177-2/3/4 #109 -- Insulator - Microswitch -- PN: 177-2/3/4 #13a -- Microswitch - Ground -- PN: 8182-G #109 -- Insulator - Microswitch -- PN: 177-2/3/4 #13 -- Microswitch GLS -- PN: 8182 #109 -- Insulator - Microswitch -- PN: 177-2/3/4 #13 -- Microswitch GLS -- PN: 8182 #12 -- Lockwasher - Switch Cover -- PN: 8191 #11 -- Nut - Switch Cover/Terminal Block -- PN: 8178 #109 -- Insulator - Microswitch -- PN: 177-2/3/4 #14 -- Switch Lever Part - With Spring -- PN: 8184 #14 -- Switch Lever Part - With Spring -- PN: 8184 #72 -- Switch Cover -- PN: 8190 #7 -- Distance Piece E -- PN: 8006(15in), 12006(20in) #6 -- Motor -- PN: 12003(10in), 8003(15in), 11003(20in) #4, #5 -- Black Fan (Ventilator & Tension Pin) -- PN: 8015, 8007 #6 -- Motor -- PN: 12003(10in), 8003(15in), 11003(20in) #3 -- Distance Piece G -- PN: 8005(15in), 12005(20in) #114 -- Lockwasher M6 - Bearing Pin -- PN: 8219 #25 -- Brush Cover -- PN: 8028(15in), 11028(20in) #21 -- Housing E Complete -- PN: 8016 #43 - Corner Protector -- 8042-EF (Electrical, Front), 8042-ER (Electrical, Rear), 8042-GS (Gear Side) #43 - Corner Protector -- 8042-EF (Electrical, Front), 8042-ER (Electrical, Rear), 8042-GS (Gear Side) #43 - Corner Protector -- 8042-EF (Electrical, Front), 8042-ER (Electrical, Rear), 8042-GS (Gear Side) #43 - Corner Protector -- 8042-EF (Electrical, Front), 8042-ER (Electrical, Rear), 8042-GS (Gear Side) #43 - Corner Protector -- 8042-EF (Electrical, Front), 8042-ER (Electrical, Rear), 8042-GS (Gear Side) #43 - Corner Protector -- 8042-EF (Electrical, Front), 8042-ER (Electrical, Rear), 8042-GS (Gear Side) #59 - Removable Dust Flap (Front only) -- 8047R (15 inch), 11047R (20 inch)
